Atria R

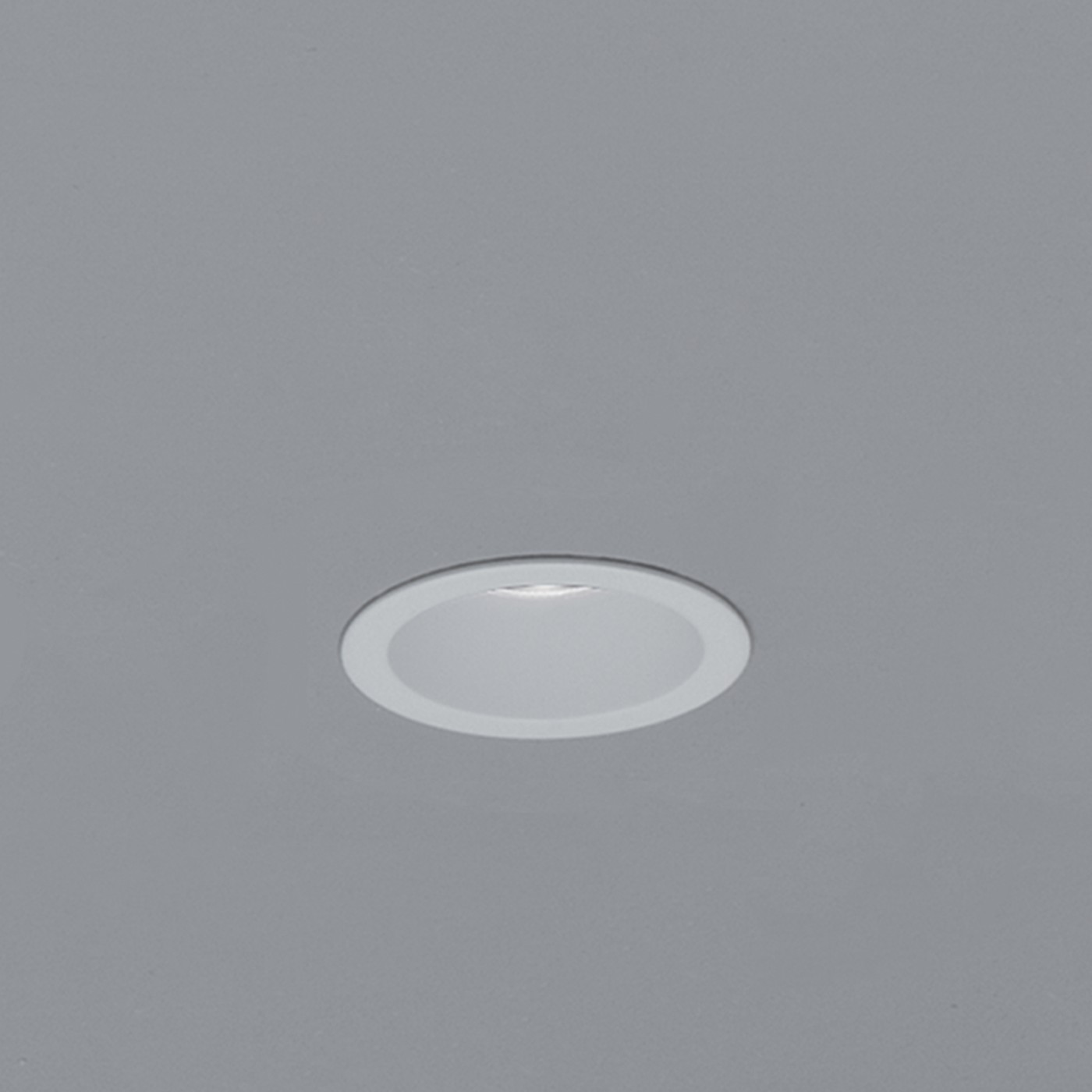

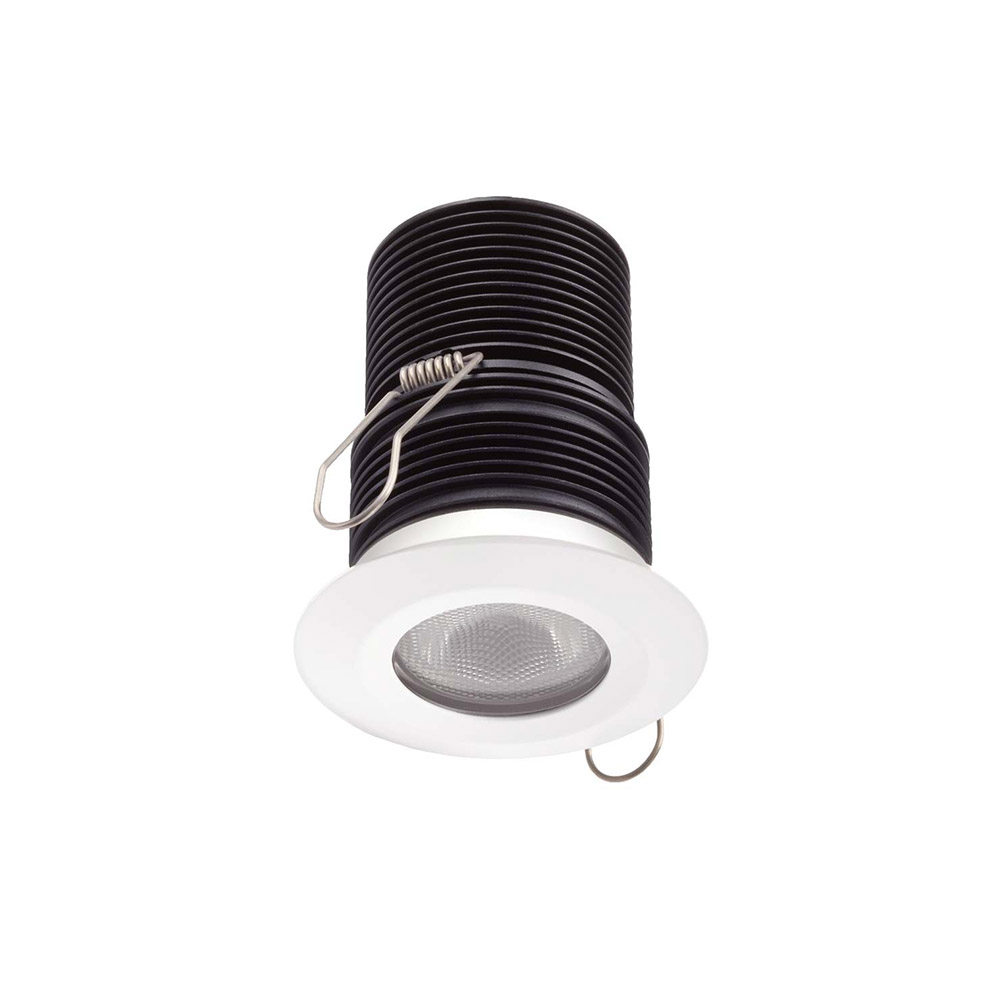

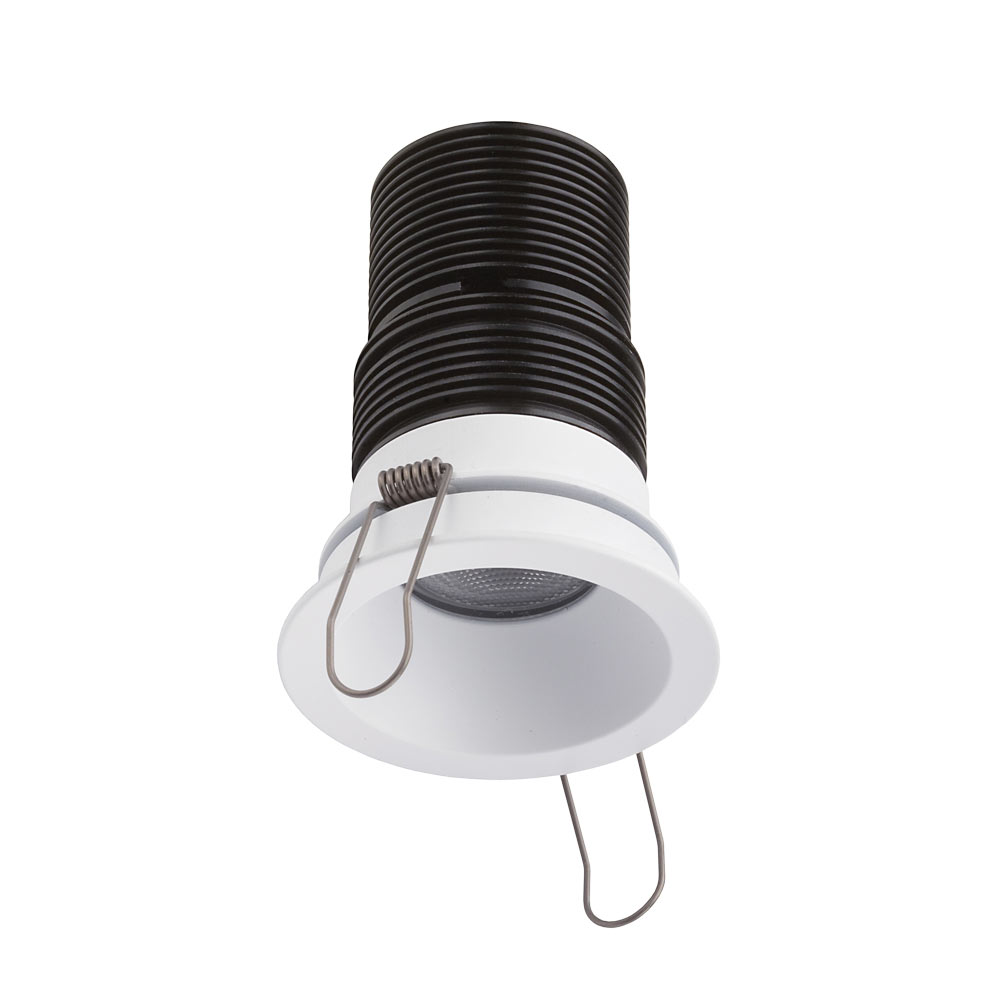

Recessed downlight luminaire for outdoor applications, provides a powerful lit effect. Ideal for highlighting an architectural project

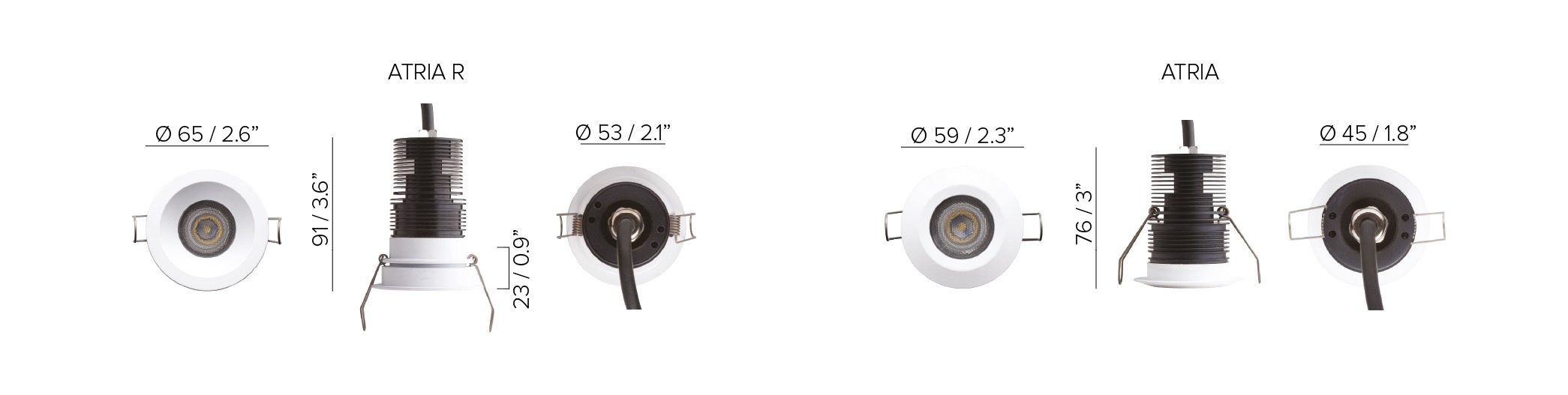

  • Ddiameter: 64,5 mm / 2.54”
  • Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C / 140°F
  • Recessed LED position for minimal glare
  • Features a selection of three different optics delivering beam angles including a spot of 16°, a flood of 36° and a wide flood of 45°
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: 4,5W at 48V DC and 350 mA. North America 350 mA
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive
  • Push button, potentiometer, 0-10V, DALI, DMX, KNX, Crestron. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Ceiling cut out: Plasterboard: 58 mm / 2.28” – Concrete: 63 mm / 2.48”
  • IP67
