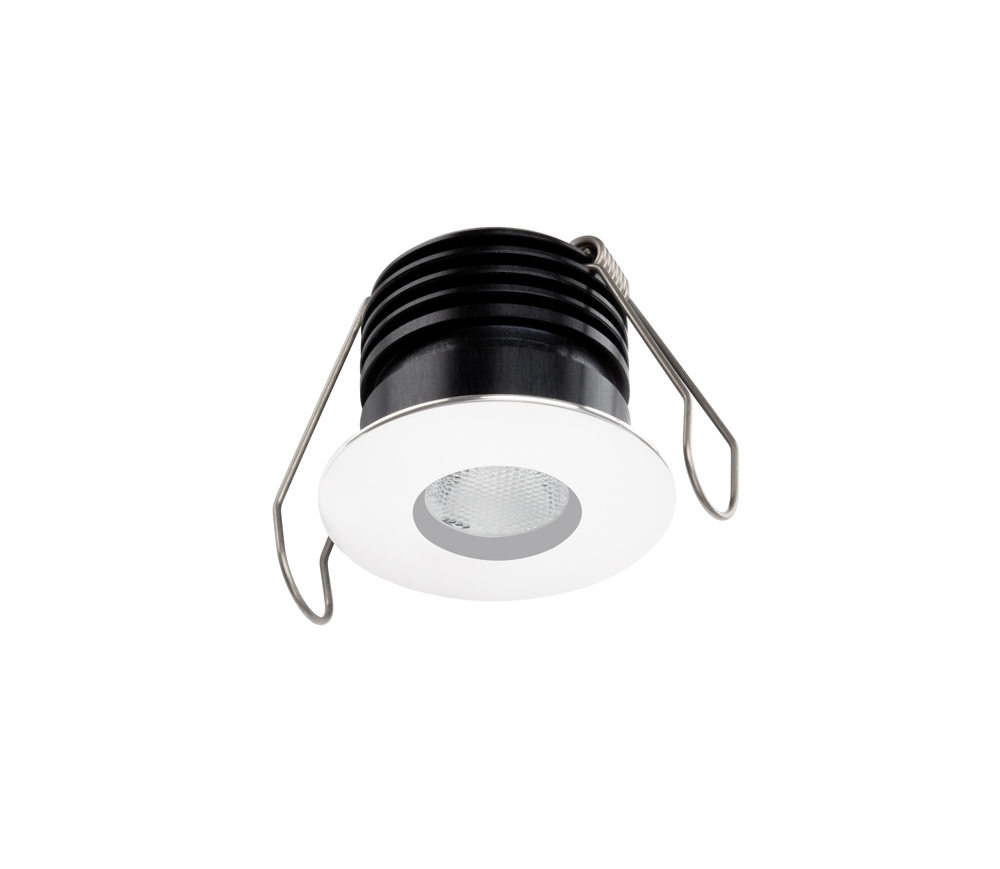

Atlas Mini

Compact downlight, ideal for highlighting small niches and objects

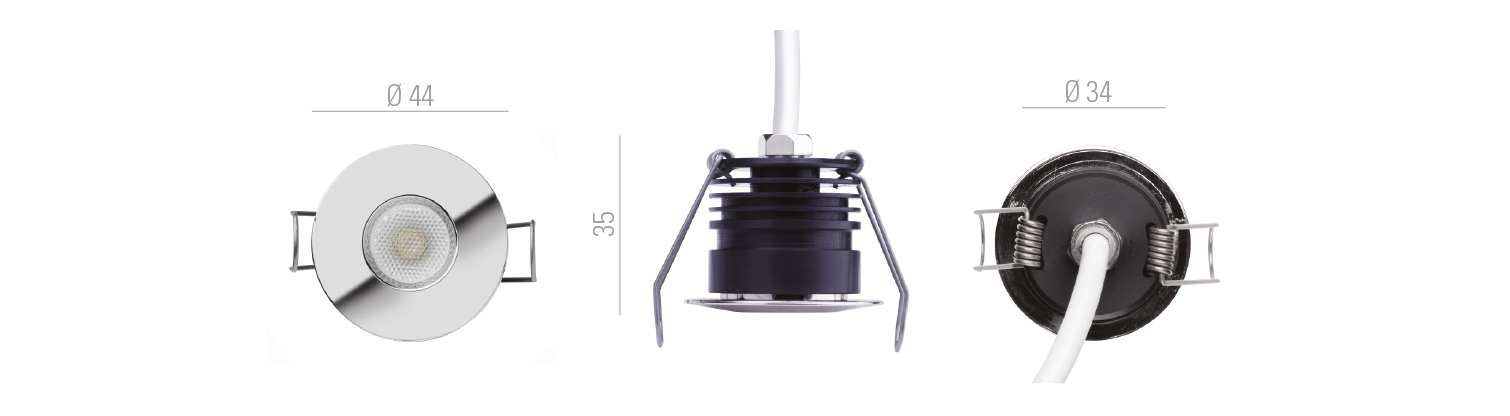

  • Diameter: 44 mm
  • Features a selection of three different optics: 15°, 34° and 40°
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: 2,3W at 48V DC and 2W at 500 mA
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C
  • Dimming options: push button, potentiometer, 0-10V, DALI, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Global IP40, optical housing IP44
