Ellipse

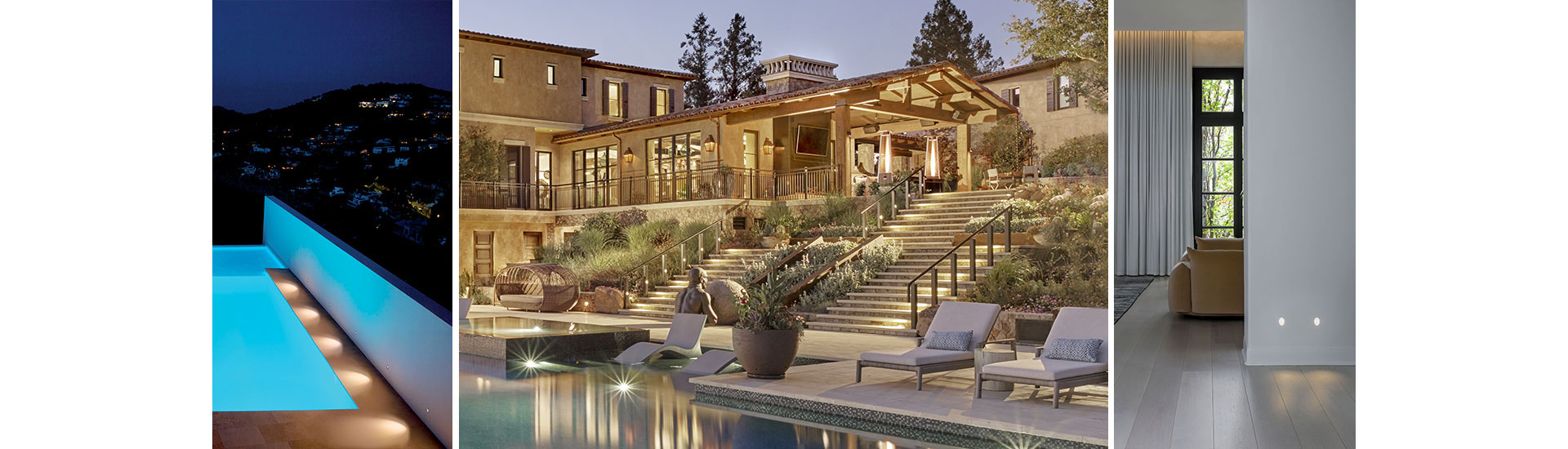

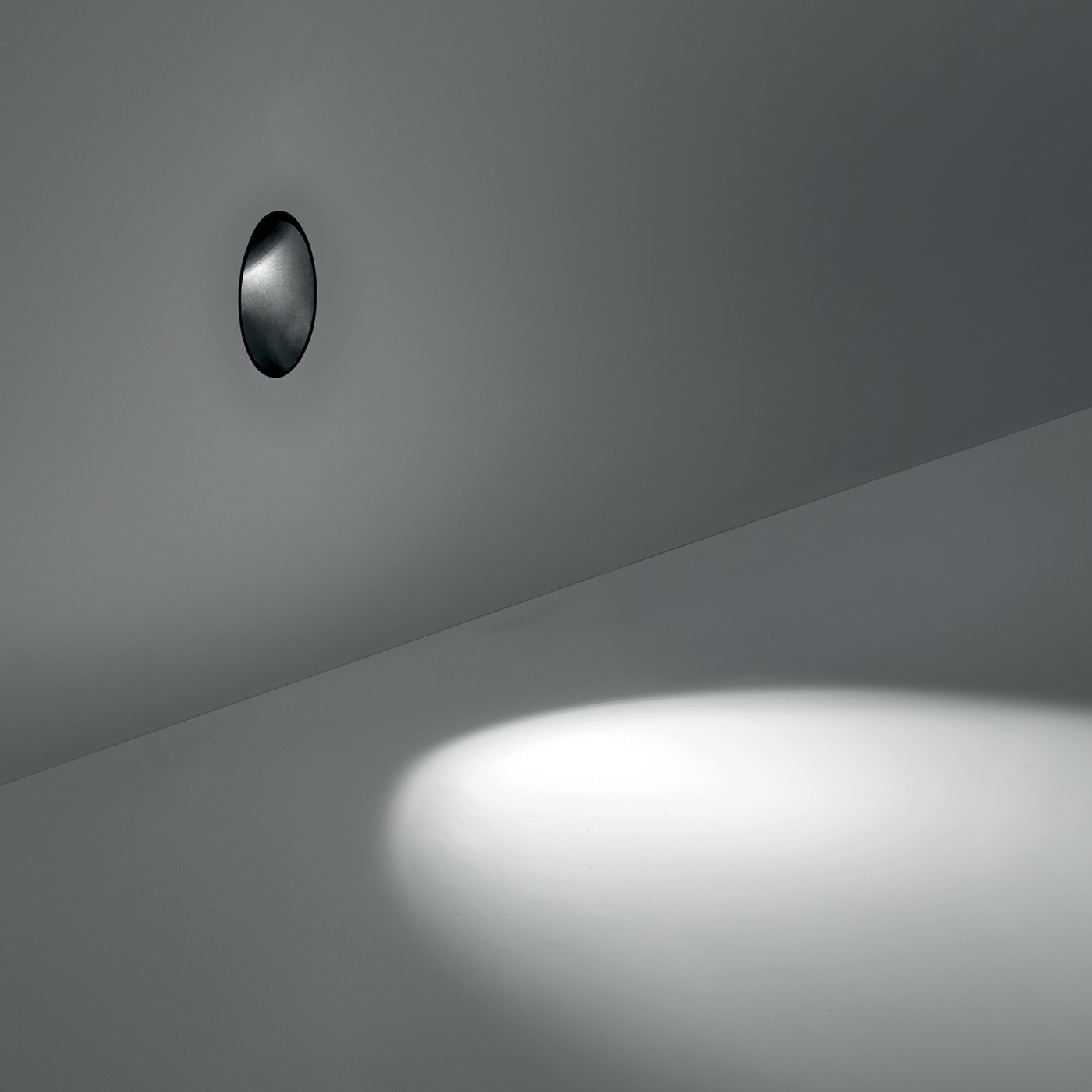

Wall mounted step light totally flush with the wall for indoor and outdoor use

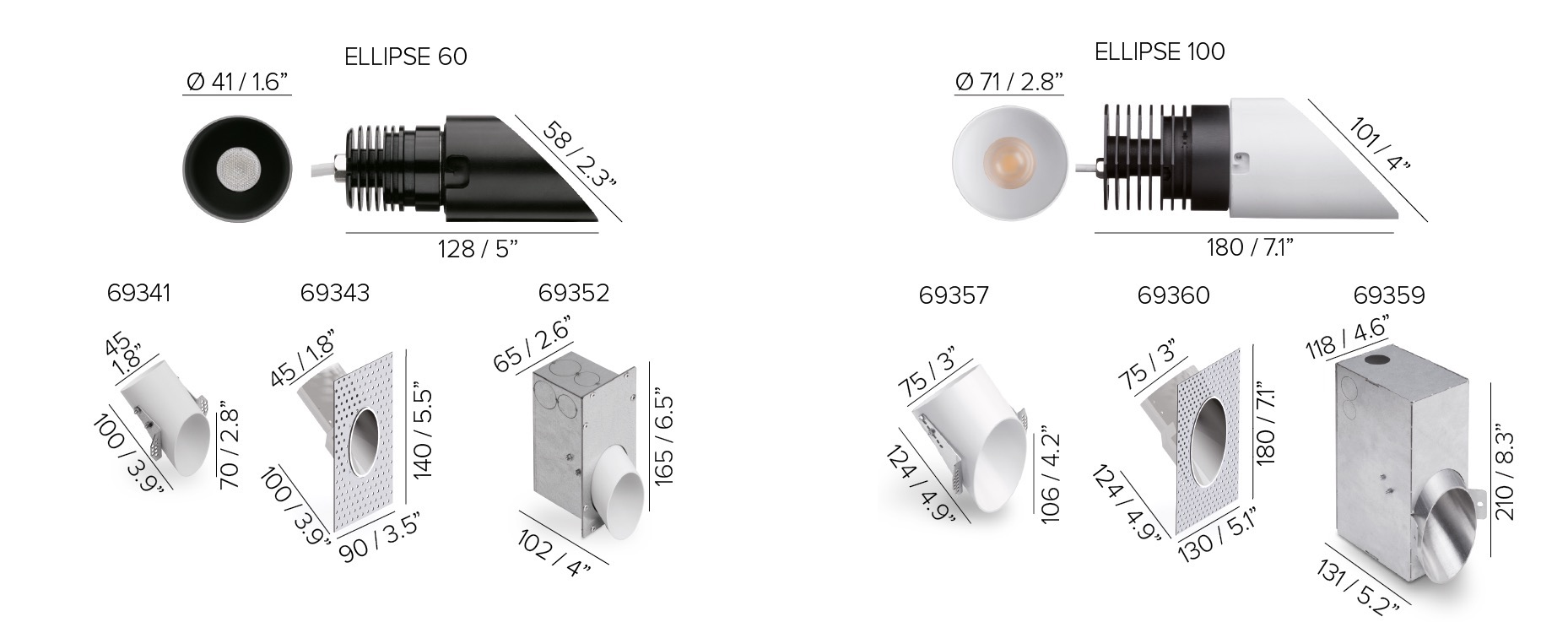

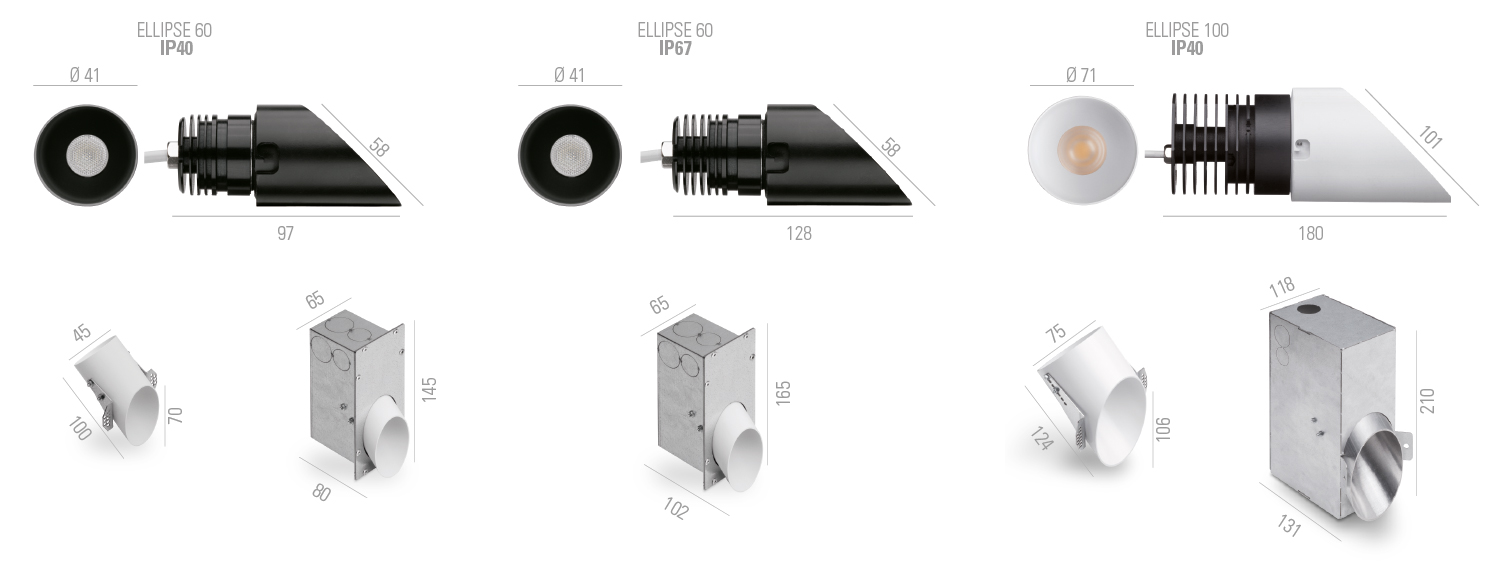

  • Available in three versions:ELLIPSE 60 (IP40) 41×58 mm – ELLIPSE 60 (IP67) 41×58 mm – ELLIPSE 100 (IP40) 71×101 mm

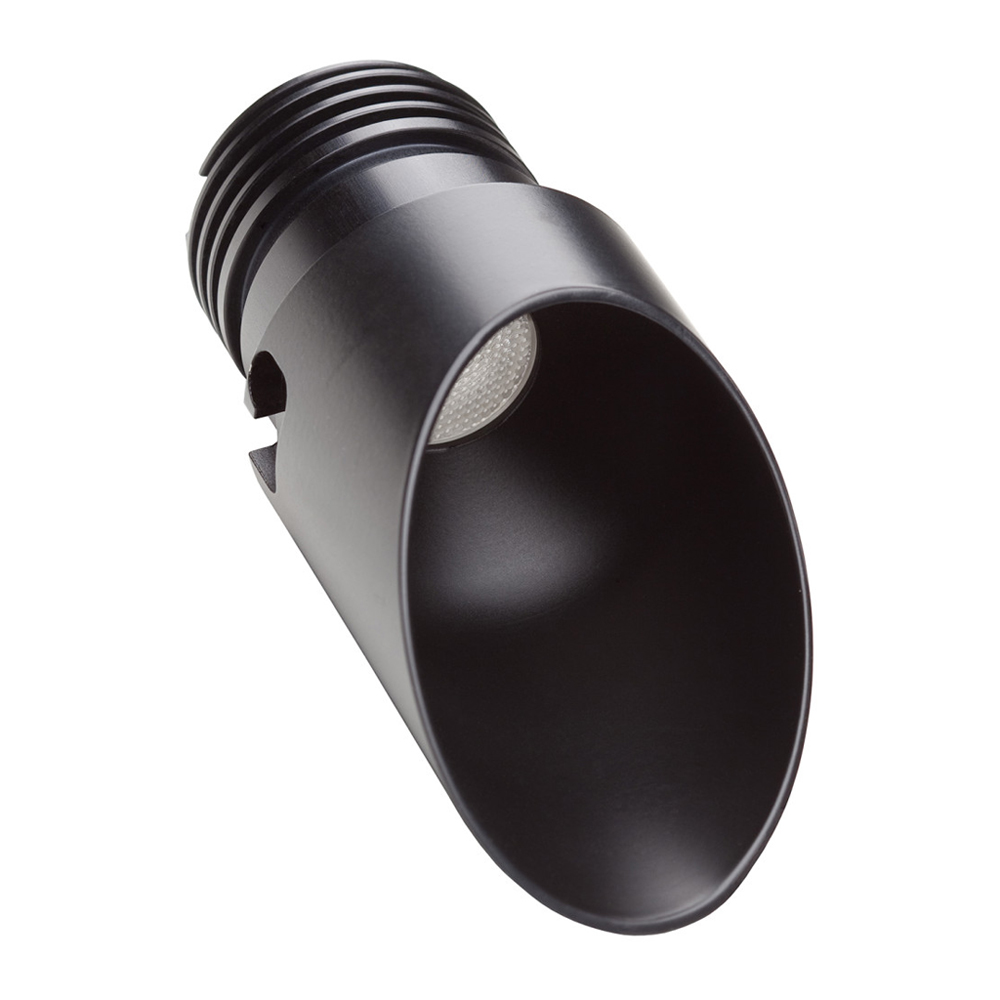

  • Deep recessed optics on a 45° tilt and reflector cup available also in black for low glare

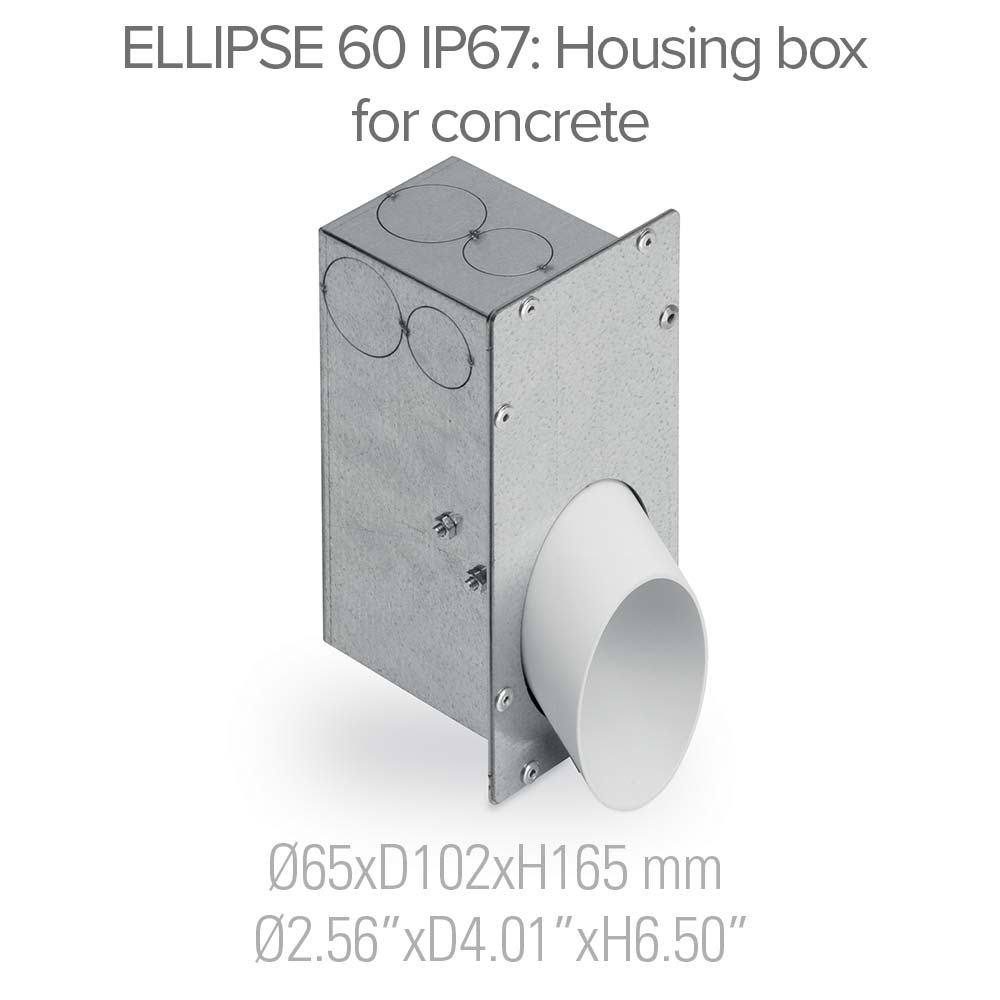

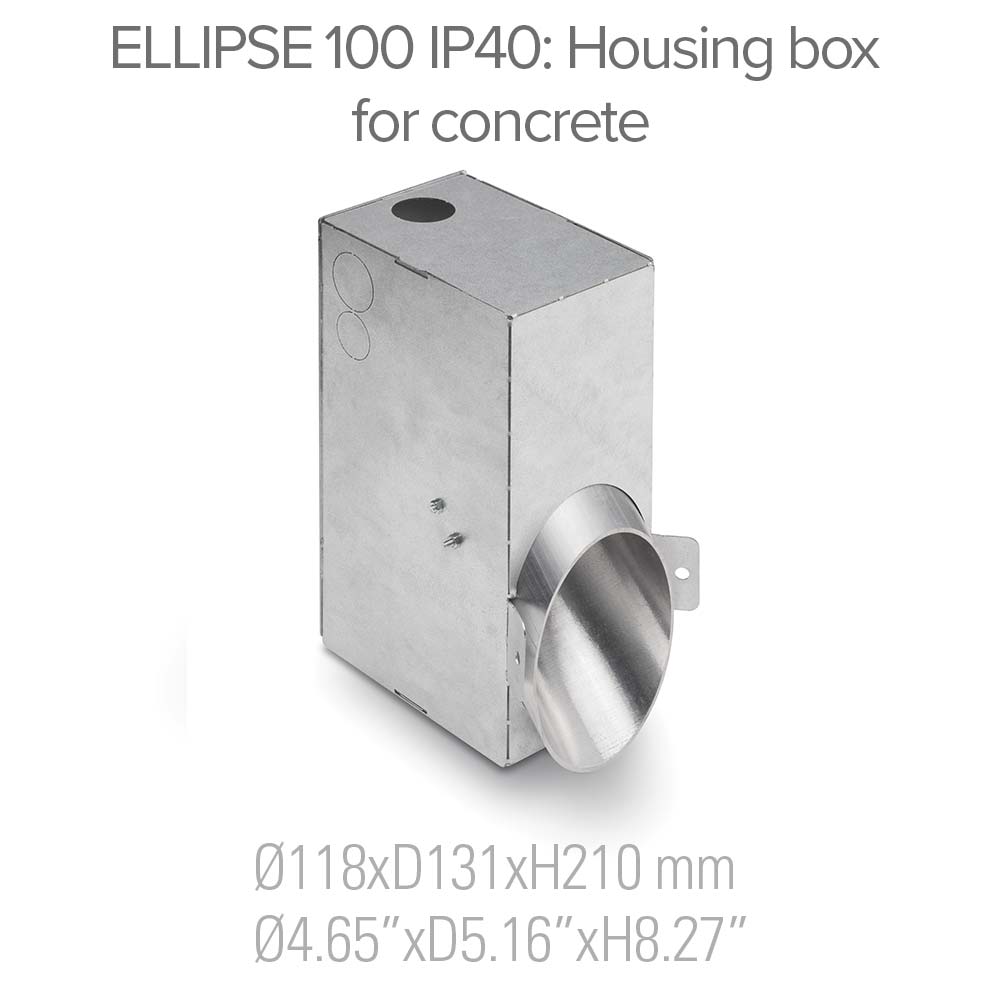

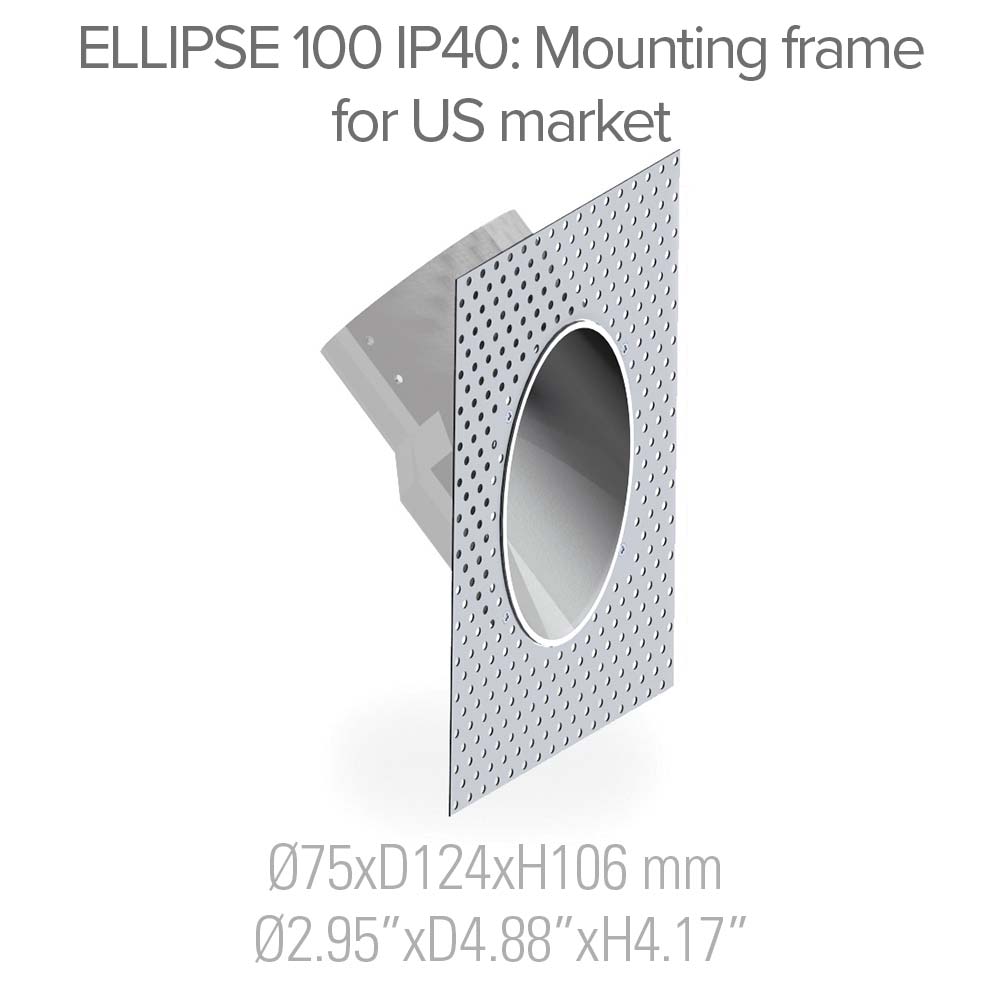

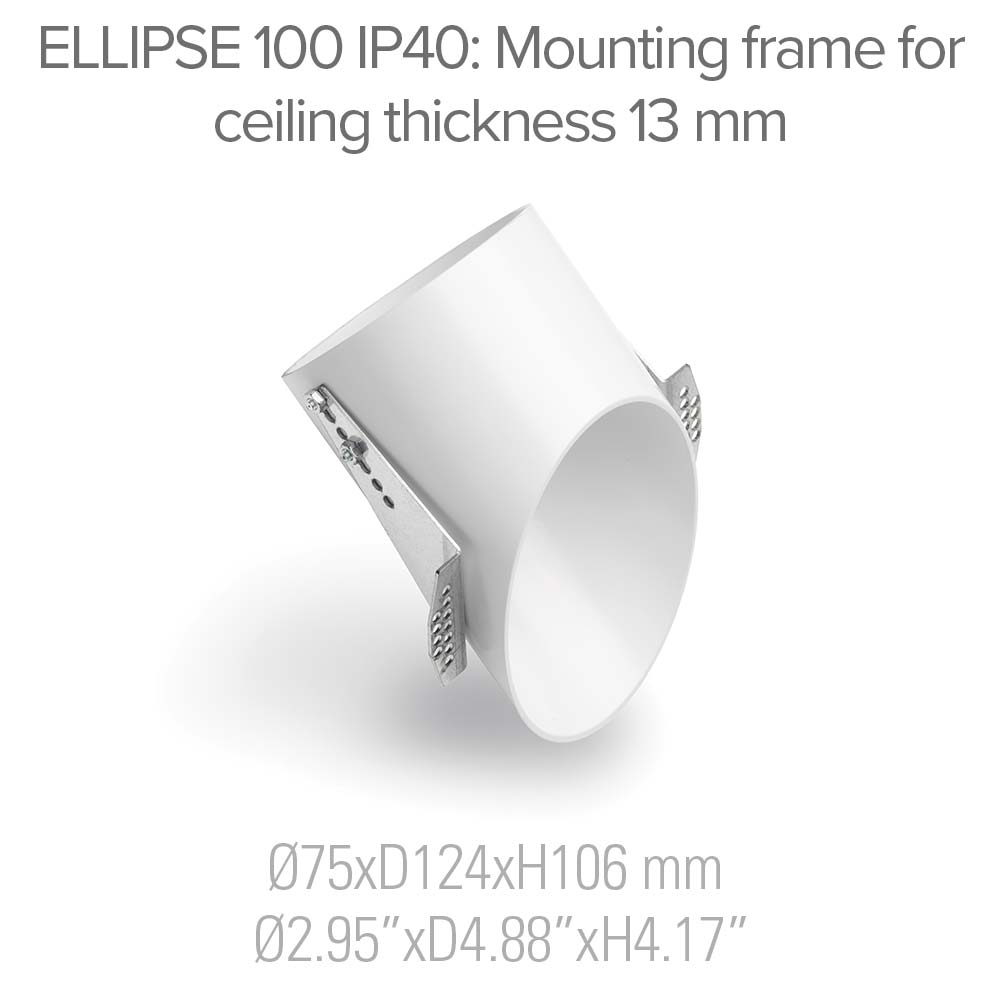

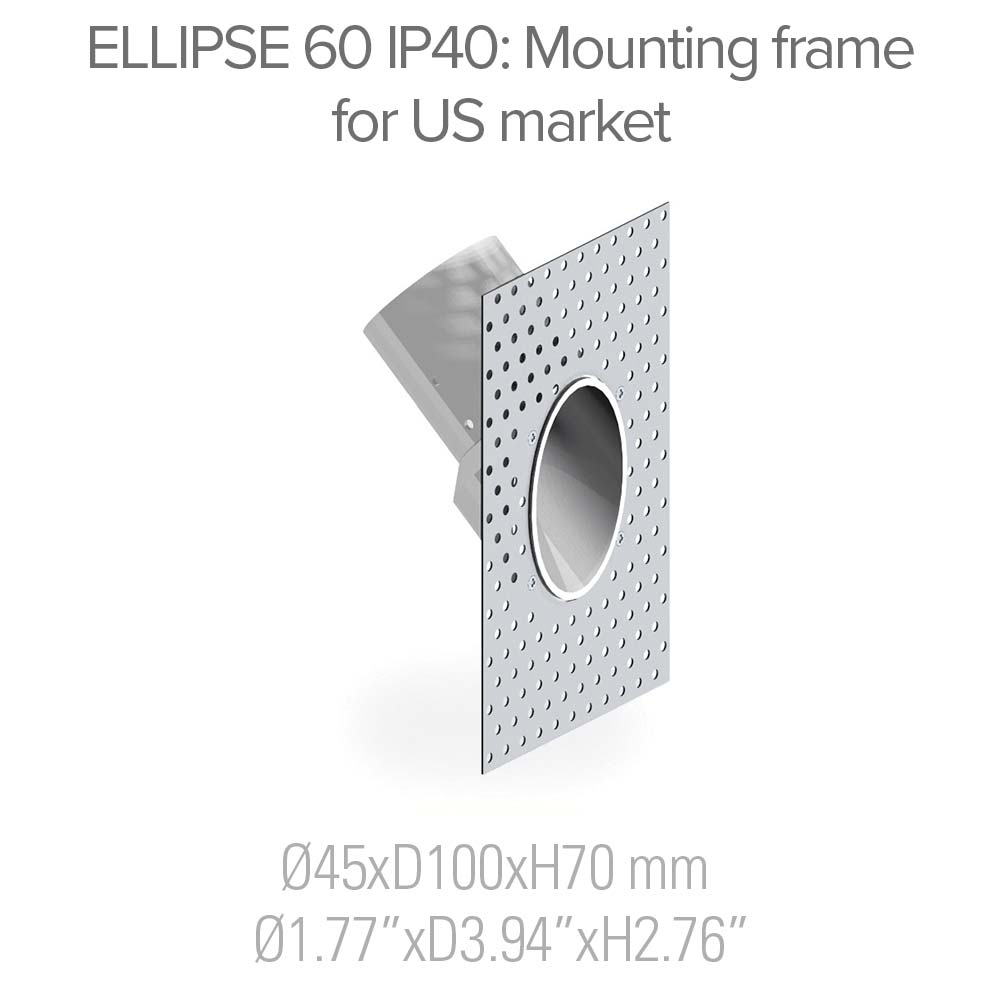

  • Installation through a housing box to be separately ordered
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: ELLIPSE 60, 2,3W at 48V DC and 2W at 500 mA.  ELLIPSE 100, 12W at 48V DC and 350 mA
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C
  • Dimming options: push button, potentiometer, 0-10V, DALI, DMX, KNX. Dimming options depend on power supply to be separately ordered as accessories
  • IP40 / IP67
